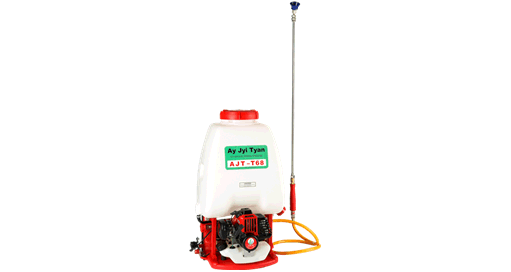

Knapsack Power Sprayer
Product Name : Knapsack Power Sprayer
Product Model : AJT-T68
Product Description
Product Name：Knapsack Power Sprayer
Model： AJT-T68
Enlargement
Product Character
Pressire (max.): 35 kg / cm2
Pump: Horizontal gear-driving type
Plunger: 1 unit (two-way operation)
Cylinder: 2 units
Dia. of plunger: 18mm
Stroke: 9mm
Spraying volume: 8 liter/min
Pressure: 35-40 kg/cm2
Engine: AJT-26
Horsepower: 1.4 HP
Diesel tank capacity: 0.9 L
Air consumption: 25.6 c.c
Length of hose: 20m-100m
Mixing ratio of fuel: 25:1
Pesticide tank capacity: 25L
L x W x H: 41 x 37 x 63 (cm)
Weight: 9kg
